SLA400 is an industrial-grade stereolithography (SLA) 3D printer, renowned for its high precision and fast printing speed. This printer is ideal for a wide range of applications, including prototype manufacturing, electronics, automotive, aerospace, and architectural design.
Stable Printing Process
Utilizes SLA molding process for stable and high-quality industrial-grade printing.
Cost-Effective
Offers a more cost-effective solution compared to other printers of similar forming size.
Smaller Footprint
Compact overall dimensions for efficient space utilization.
Internal Dehumidification
Constant temperature and humidity, eliminating the need for additional equipment.
Built-in monitoring system to remotely monitor printing status
Removable resin tanks for easy pick-up and filling
Removable Platform For Easy Access And Removal Of Supports
constant temperature and humidity,No environment-specific configuration required
Product Model | Super Maker SLA-400 |
---|---|
3D Technology | Stereo lithography Appearance |
Machine Dimension | 880*870*1720mm |
Gross Weight | Around 450kg (excluded materials) |
Laser | CUstomized uv laser |
Galvanometer | High-end digital Galvanometer |
Spot Size | 0.1mm |
Scanning mode | Galvo scanning |
Scanning Speed | Between 6000mm/s-10000mm/s |
Liquid level detection | Laser level sensor |
Material | 355-380nm photosensitive resin |
Printing Volume | 400mm×400mm×350mm (can be customized) |
Layer thickness | 0.05mm—0.15mm |
Printing speed | MAX 180g/h |
Resin Tank | Removable & Replaceable |
Power Supply | 220V,50HZ |
Rated Input Power | 650W |
Printing Accuracy | Part size <100mm:L±0.1mm |
Part size ≥100mm:L±0.1%×L | |
Super Maker SLA-400 |

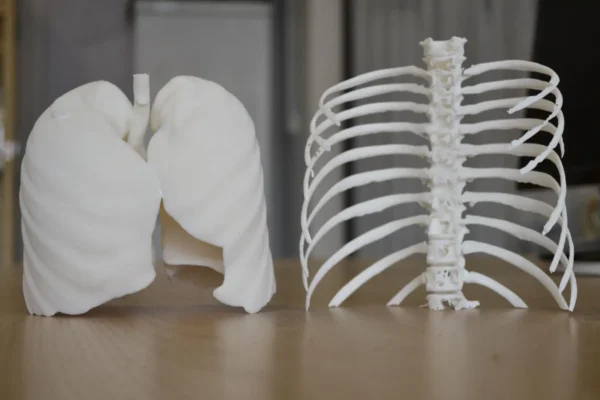

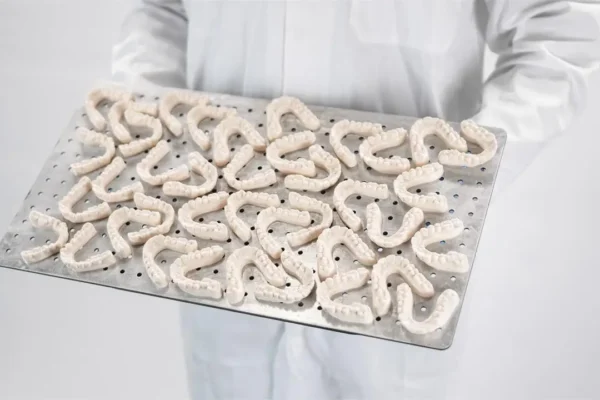

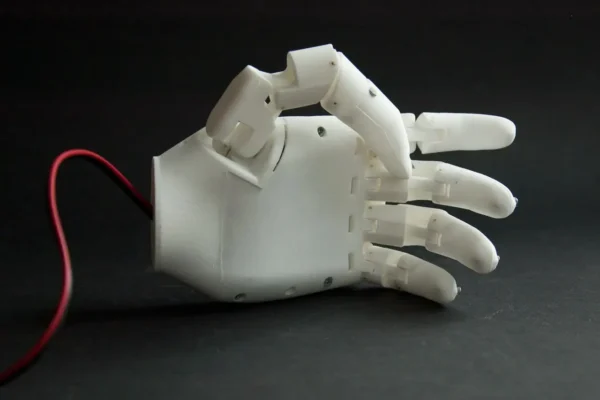

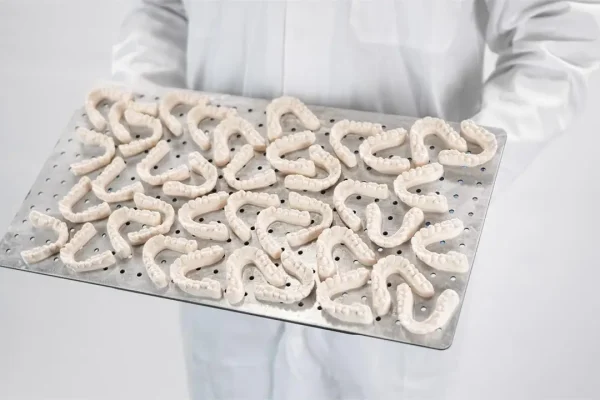

an industrial-grade stereolithography (SLA) 3D printer, has found significant applications in the medical field. Its high precision and fast printing speed make it an ideal tool for creating customized medical models, dental prosthetics, and surgical guides.

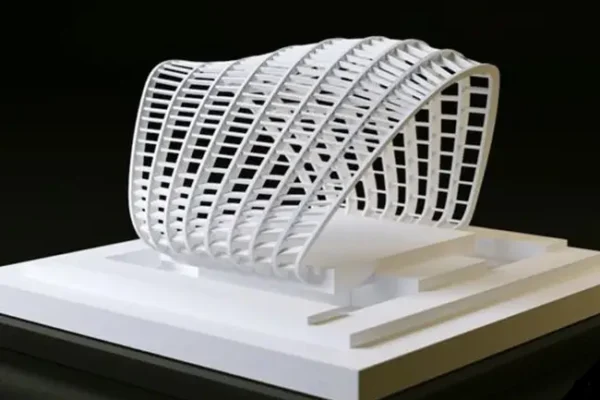

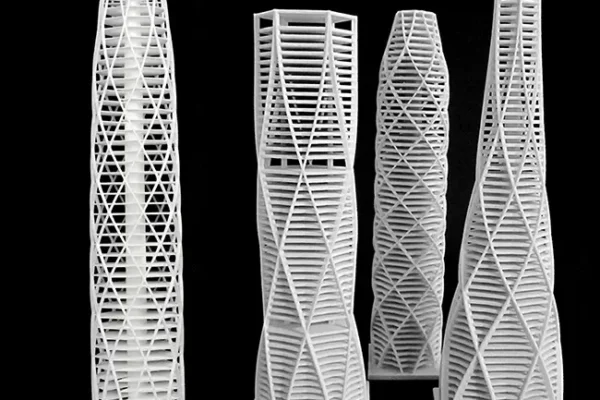

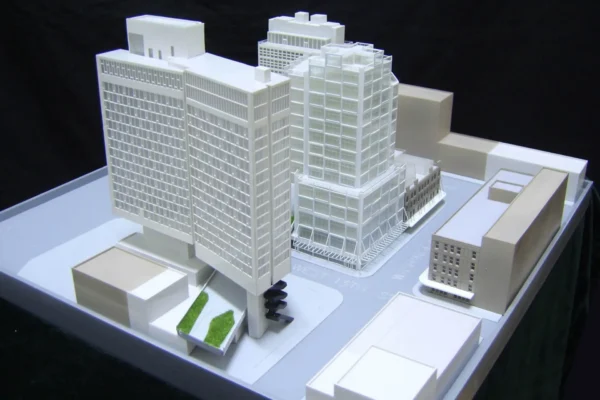

Its high precision and fast printing capabilities enable architects and designers to create detailed and accurate architectural models, enhancing the design process and facilitating better decision-making.

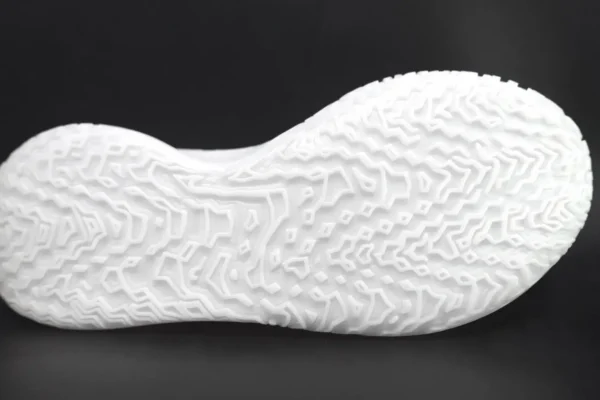

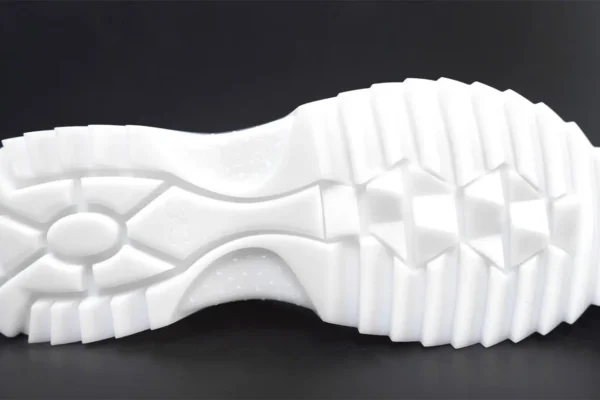

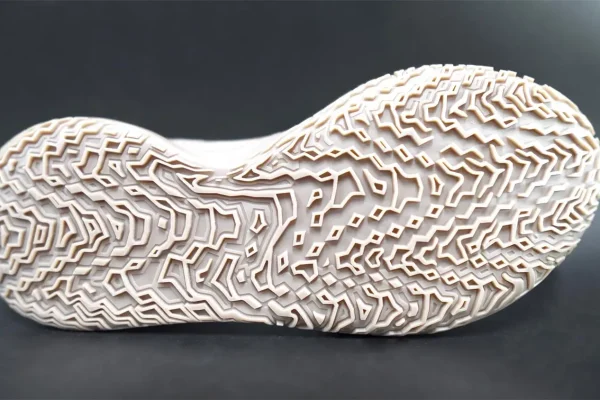

Its high precision and fast printing capabilities enable manufacturers to produce customized shoe molds and prototypes, significantly improving the design and production process.
Get in touch with our experts to find the right SLA solution for your needs
SLA resin printing is suitable for applications requiring high accuracy, smooth surfaces, and intricate details. The wide range of available resin types, including standard, engineering, castable, dental, and jewelry resins, enables diverse applications across prototyping, manufacturing, healthcare, and consumer products.
